Yamaha FOH Package

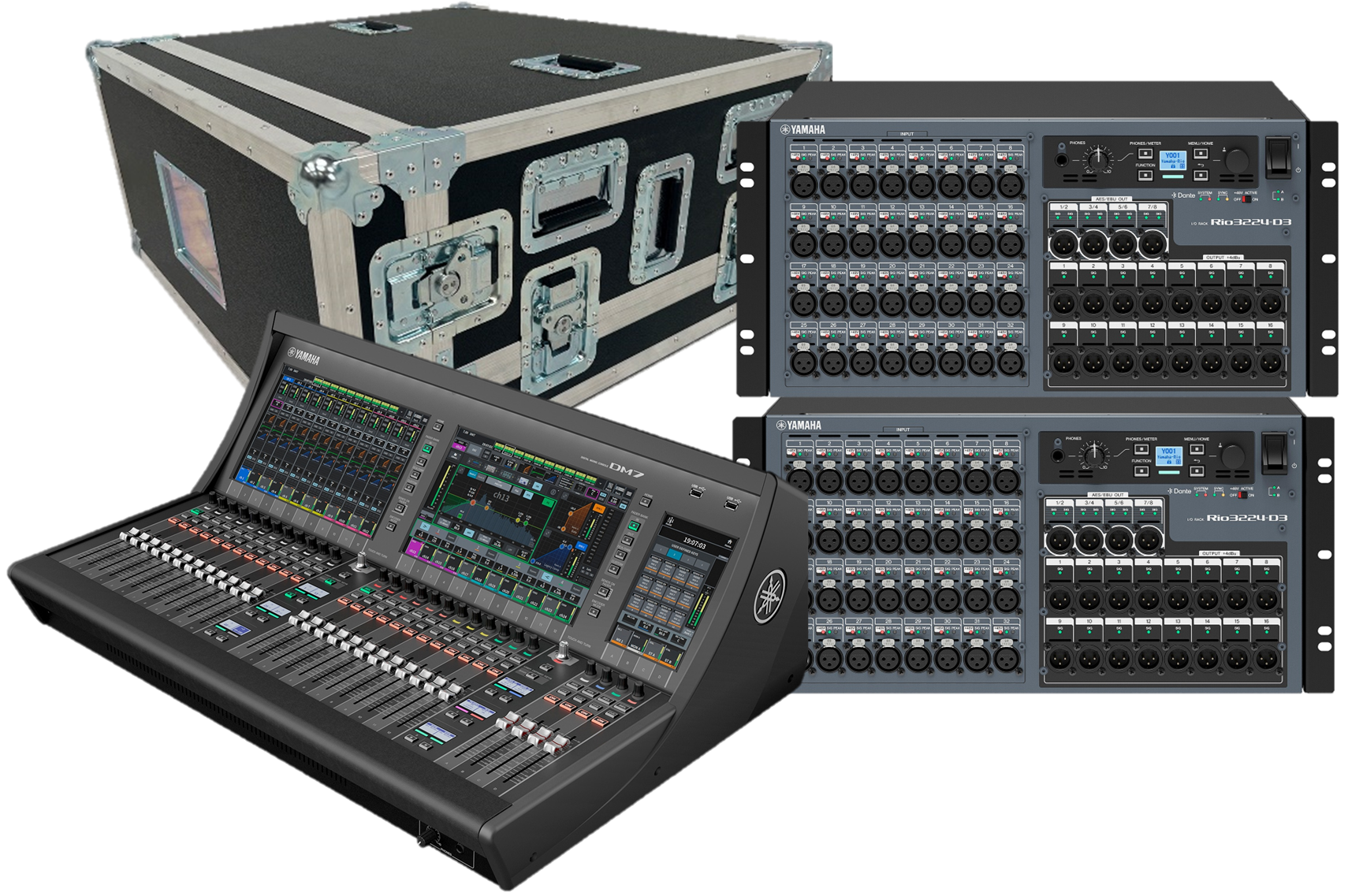

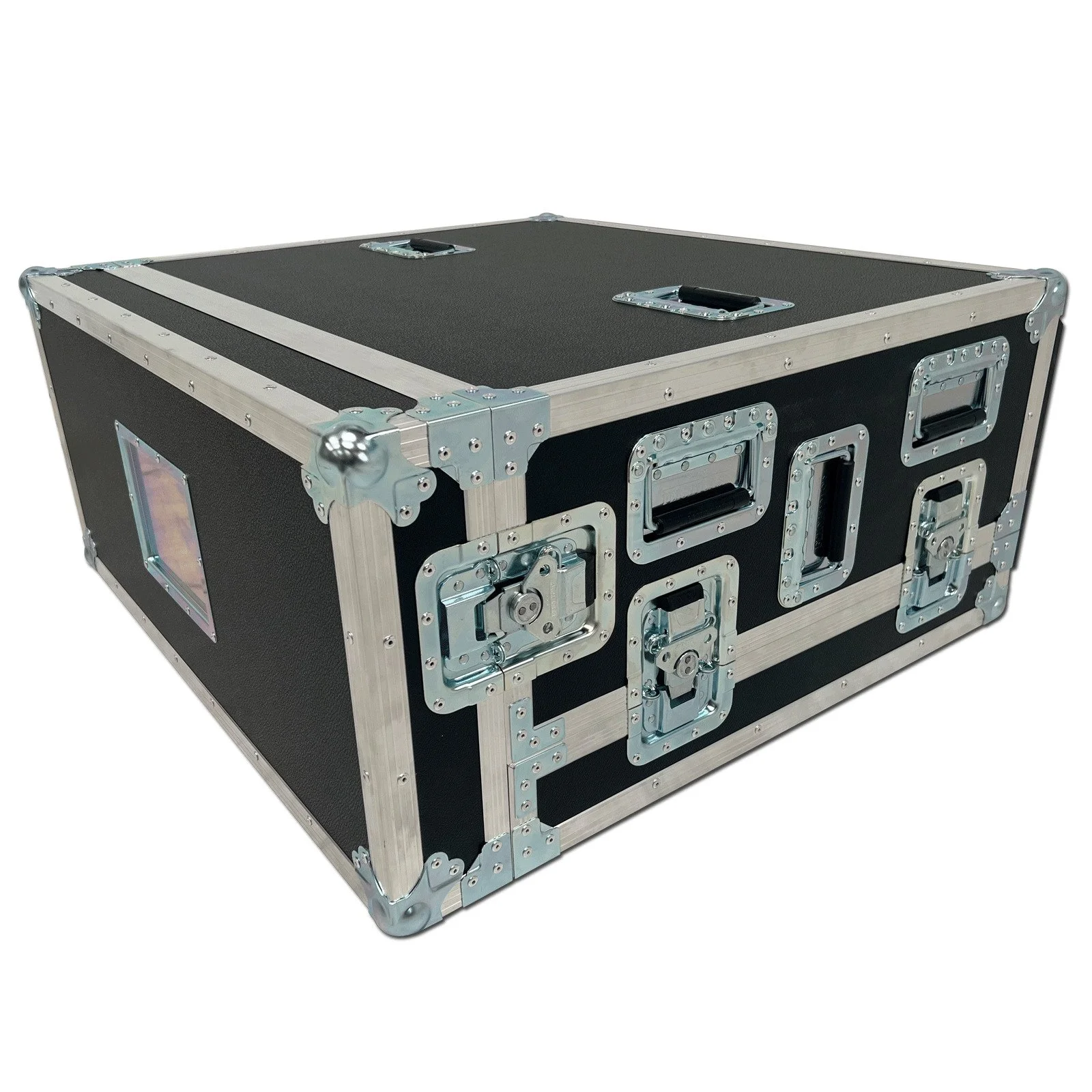

This Front of House Package comes with One DM7 Console with flightcase and Two RIO3224D3 Stageracks in a 10U Flightcase.

Options Available:

An Extra DM7 or DM7C for Monitors. Both come with Flightcases by Flightcase Warehouse.

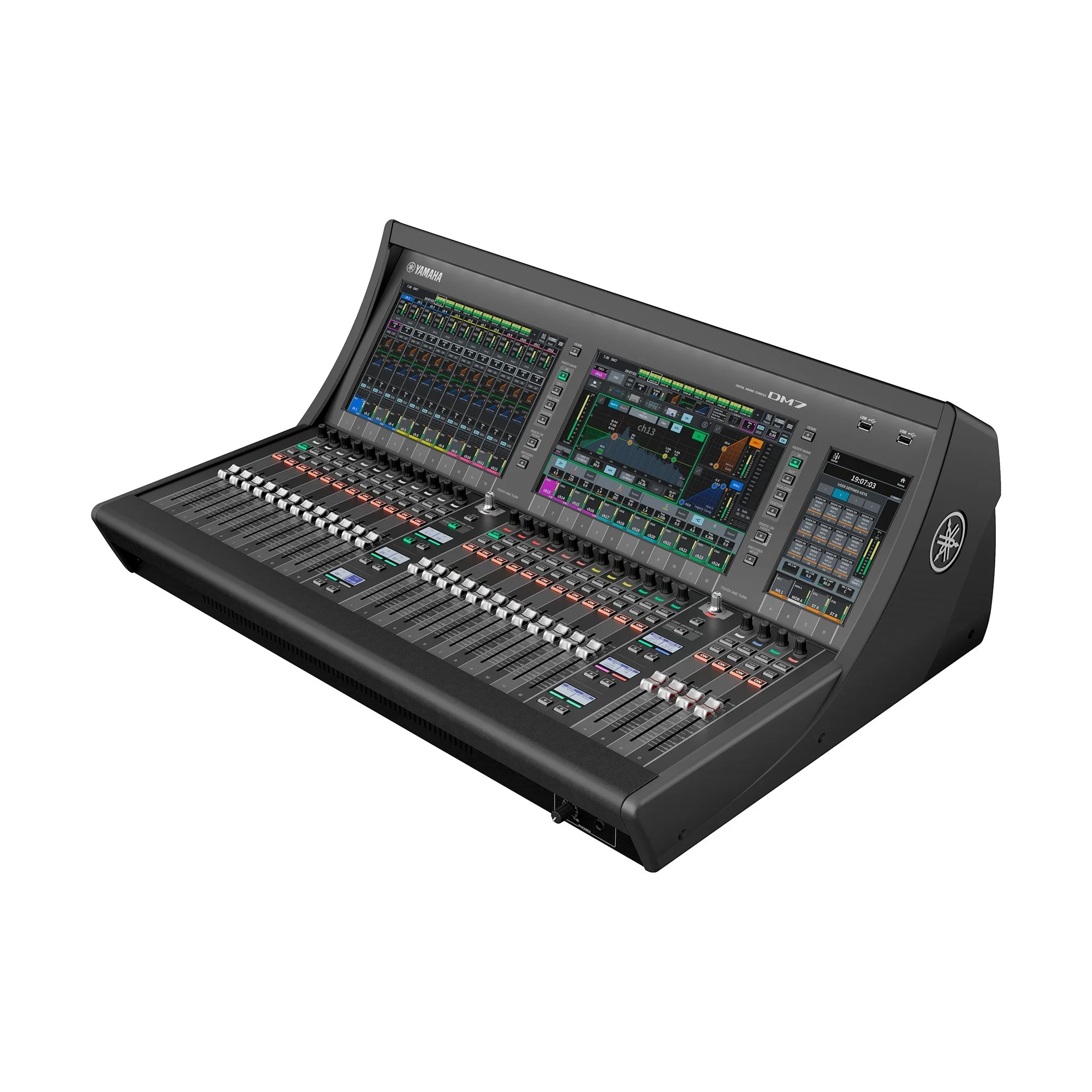

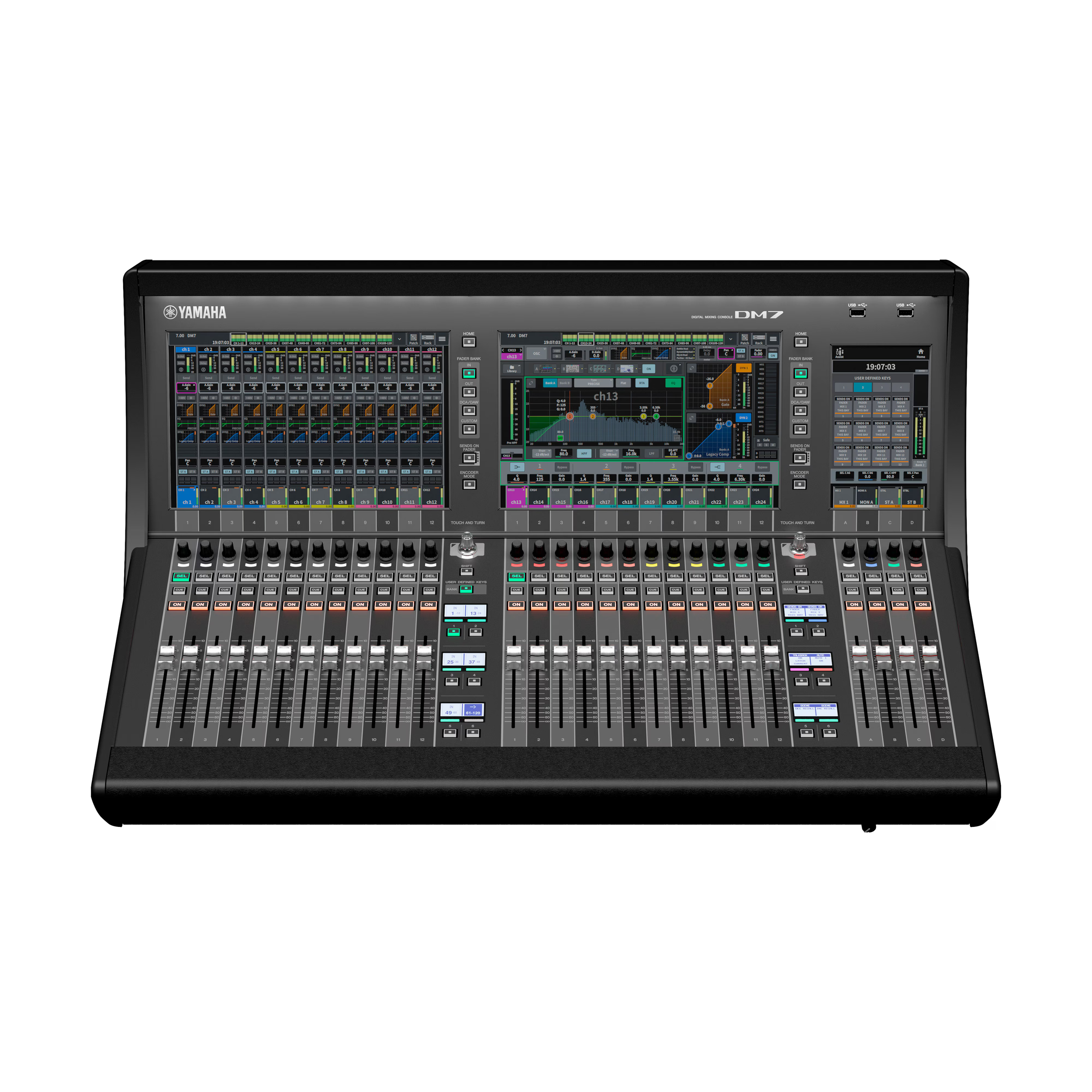

Yamaha DM7

Key features

1. 120 Mono inputs

2. 48 Mix busses

3. 12 Matrix busses

4. 2 12.1" Multi-Touch screens

5. 2 12.1" Multi-Touch screens

6. Dual Power Supply

Tech Specs

1. Sampling frequency: 48 kHz / 96 kHz

2. Local I/O: 32 Mic / Line inputs, 16 outputs

3. USB 2.0 audio interface: 18 inputs / 18 outputs

4. Dante interface: 144 inputs / 144 outputs

5. Dimensions (W x H x D): 793 x 324 x 564 mm

6. Weight: 23.5 kg

Yamaha DM7C

Key features

1. Input mixing channels: 72 mono

2. Buses: 48 Mix + 12 Matrix + 2 Stereo

3. Display: 12.1" multi-touch screen x 1, 7" multitouch screen x 1

4. Faders: 16 (12 + 4)

5. Analog I/O: 16 inputs / 16 outputs

6. Dante: 144 in / 144 out

7. AES/EBU: 1 out

8. Slot: PY Slot x 1

9. USB Audio Interface: 18 in / 18 out

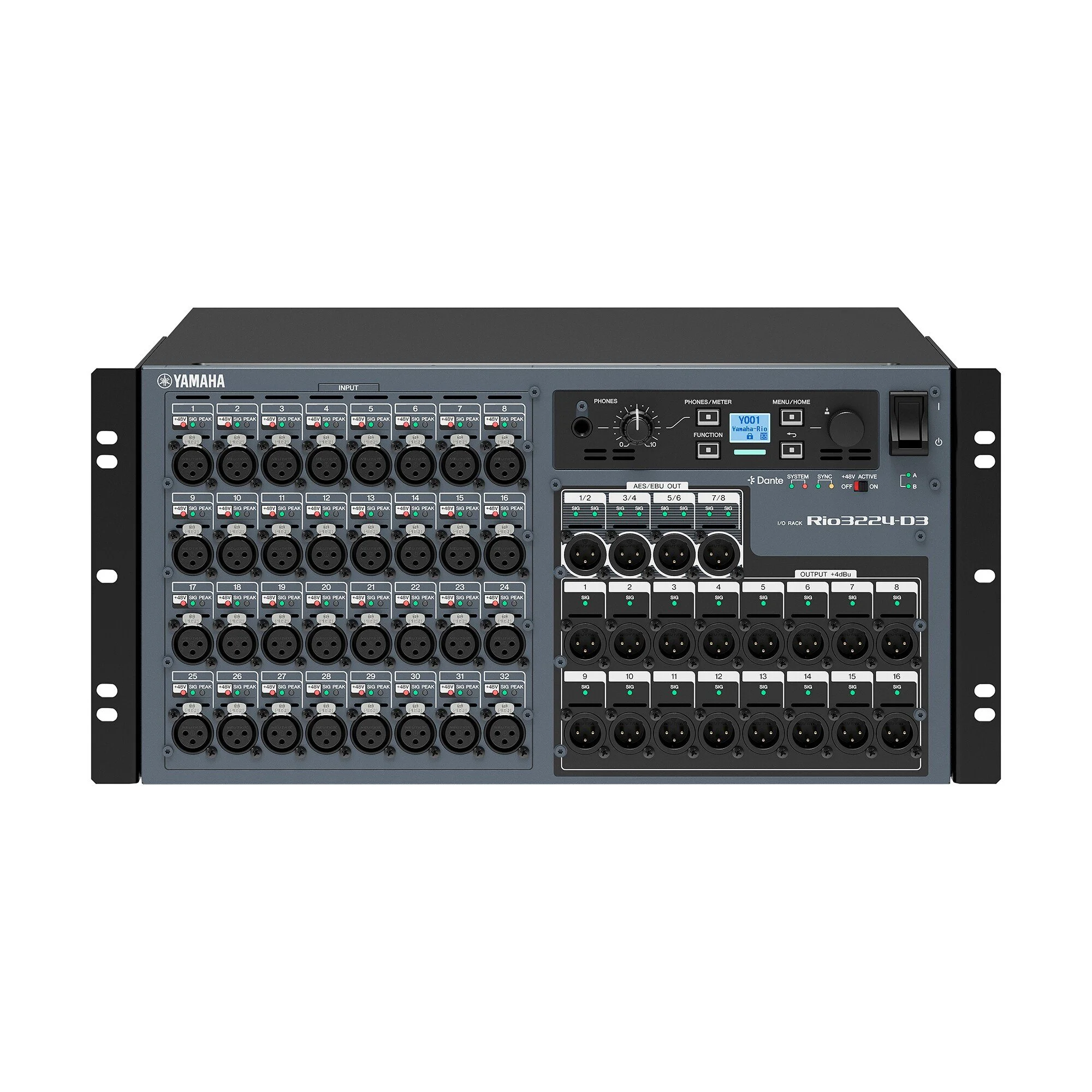

Yamaha Rio3224D3

Key features

1. 32 analog inputs and 16 outputs, and 8 digital outputs.

2. Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported.

3. Comprehensive display and local control of gain and other parameters.

4. Dual power supply units are built in for high reliability.

5. Power consumption: 120W

6. Dimensions (WxHxD): 480 x 220 x 368mm (18.9" x 8.7" x 14.5")

7. Net Weight: 13.5 kg (29.8 lbs)
